PSION SPECIFICATIONS

The Psion 5 came in two main variants, the Series 5 (launched in 1997) and the Series 5mx (1999), the latter having a faster processor, clearer screen, and updated software. There was also a rare Series 5mx Pro, which differed only in having the operating system loaded into RAM and hence upgradeable. Ericsson marketed a rebadged version of the Series 5mx called the MC218. The Psion Series 5 was a major upgrade from the Psion Series 3. A Psion Series 4 does not exist, due to Psion's concern of tetraphobia in their Asian markets (source: wikipedia.org).

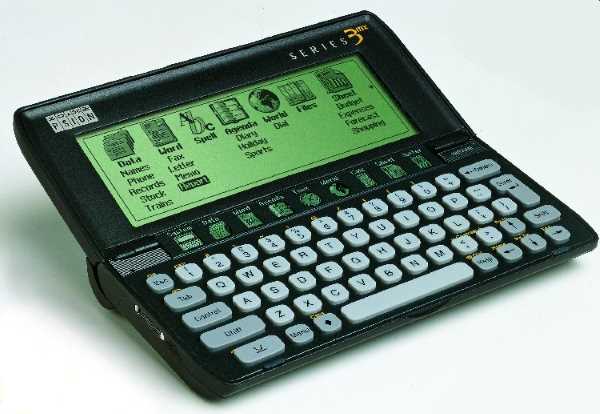

The Psion 3MX

- PSION 3mx -

Processor: 16 bit NEC V30MX, 80C86 compatible, 27.684 Mhz
Rom: 2Mb
Ram: 2Mb
Power: 2 x AA size External: AC adaptor 9v 250mA
Backup battery: Standard Lithium CR 2025 battery
Communication: RS232 Fast Serial Port
Keyboard: 58 key QWERTY - 9 touch-sensitive keys for task selection
Expansion: 2 drives
Backlit: Yes
Size: 165mm x 85mm x 22mm
Weight: 275g including 2xAA batteries
Screen: 480 x 160 LCD
Sound: Microphone loudspeaker and CODEC provide digital sound recording and playback with a sample rate of 8k per second, 8 bits wide (12 bits compressed to 8). DTMF auto-dialling

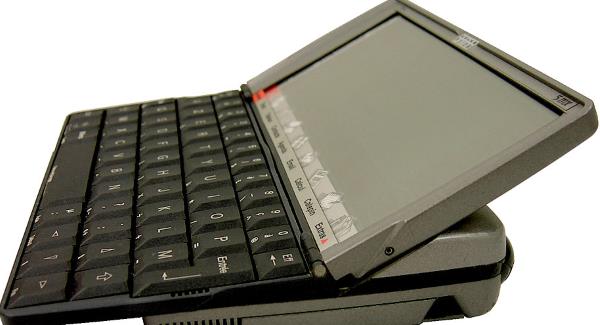

The Psion 5

- PSION 5 -

Processor: ARM 7100 (CL-PS7110) 18.432 MHz
Dimensions: 17 cm x 2.3 cm x 9 cm
Weight: 354 g
Display Resolution: 640x240 (Half-VGA) 4-bit (16 grey levels)
ROM: 6 MB
RAM: 4 MB or 8 MB
Audio Output: Speaker(s)
Audio Input: Microphone
Input Device: Keyboard, touch-screen, stylus
Removable Media Type: Compact Flash (CF) Disks
Battery: Alkaline - AA type
Average Run Time: 35 hour(s)
Operating System: EPOC32

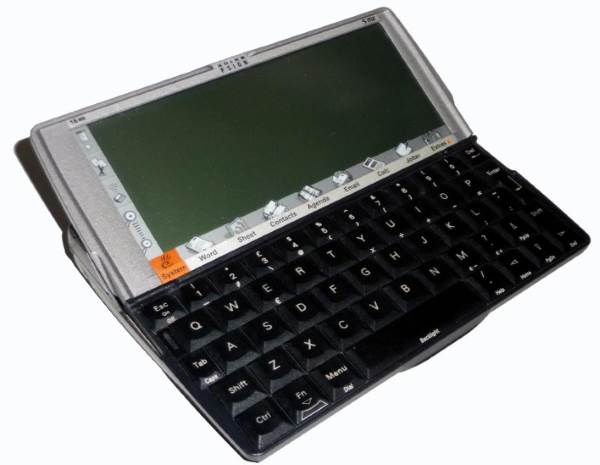

The Psion 5mx

- PSION 5mx -

Processor: ARM710T 36 MHz
ROM: 8 MB
RAM: 16 MB
Dimensions: 17 cm x 9 cm x 2.3 cm
Weight: 354 g
Colour: Grey
Display: 4-bit (16 grey levels) 640 x 240
Audio Output: Speaker(s)
Audio Input: Microphone
Input Device: Keyboard, touch-screen, stylus
Battery: Alkaline - AA type
Average Run Time: 30 hour(s)
Operating System: EPOC32
System Requirements for PC Connection: Microsoft Windows 95/98, Microsoft Windows NT 4.0 or later

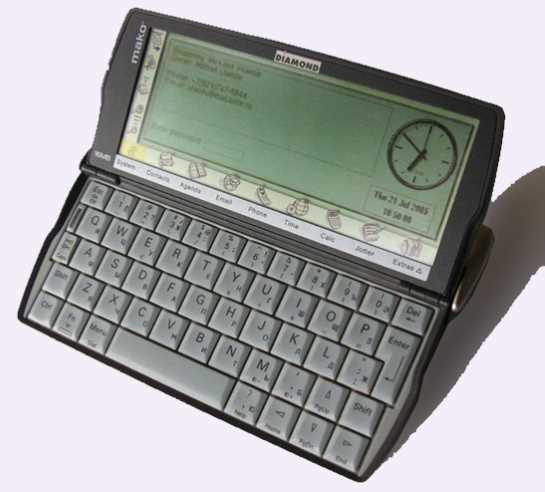

The Psion Revo

- PSION REVO -

Width 15.7 cm Weight 200 g Depth 1.8 cm Height 7.8 cm
Processor: ARM ARM710T 36 MHz
ROM: 8 MB ROM
RAM: 8 MB
Display Resolution: 480 x 160
Color Support 4-bit (16 gray levels)
Interfaces: 1 x infrared - IrDA / 1 x serial - RS-232 - 9 pin D-Sub (DB-9)
Connectivity: Docking station
Input: Keyboard, touch-screen, stylus
Audio: Output Speaker(s)
Battery: Installed Qty (Max Supported) 2 (installed) / 2 (max)
Type: Nickel metal hydride - AAA type Average Run Time 14 hour(s)
OS: Symbian EPOC32 5
Power adapter: Voltage Required AC 100/240 V +/- 10% ( 50/60 Hz )

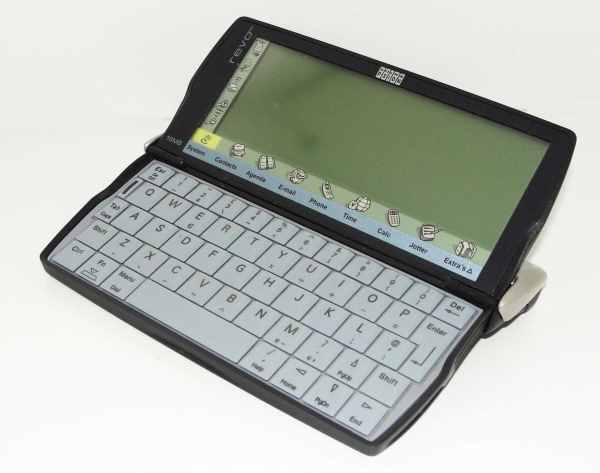

The Psion Revo Plus

- PSION REVO PLUS -

Processor: ARM ARM710T 36 MHz
ROM: 8 MB ROM
RAM: 16 MB
Width 15.7 cm Depth 7.8 cm Height 1.8 cm Weight 200 g
Colour support: 4-bit (16 grey levels)
Display Resolution: 480 x 160
Audio Output: Speaker(s)
Interfaces: 1 x infrared - IrDA
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
Connectivity Device(s): Docking station
Input Device: Keyboard, touch-screen, stylus
Power adapter: Voltage Required AC 100/240 V +/- 10% ( 50/60 Hz )
Battery: Installed Qty (Max Supported) 2 (installed) / 2 (max)
Type: Nickel Metal Hydride - AAA type
Average Run Time 14 hour(s)
Operating System: OS Provided Symbian EPOC32 5

Psion II, Psion 3, Psion 3A, Psion 3C, Psion Siena specifications
